CHANNELL Cable Management Pit / Vault Manhole System Series

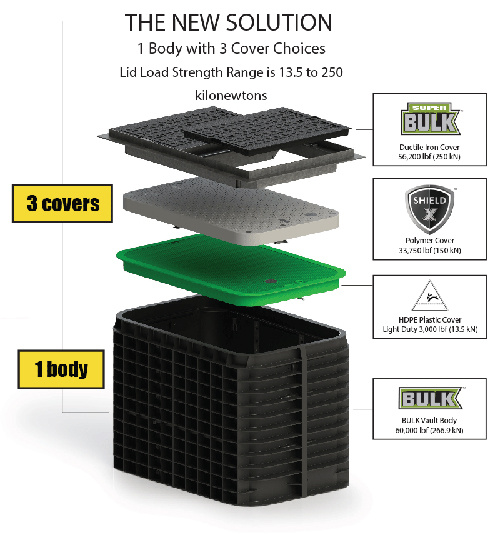

The Strongest Vault System in the Industry. Incredible Bulk features one universal vault body that is upgradeable to meet the standards of light, medium, and heavy duty applications by simply changing its lid or ring design.

The Incredible Bulk: Leader of the Underground.

Channell’s SGLB design revolutionized the box business; and with over one million in service, Channell has proven itself a force to be reckoned with in the industry. Now, the brilliant engineers of Channell have updated the SGLB design and created a new monster: The Incredible Bulk.

What is the Incredible Bulk?

The Incredible Bulk is an upgradable, re-enterable cable management vault system series with the highest-performance standards in the industry; making it the leader of the underground.

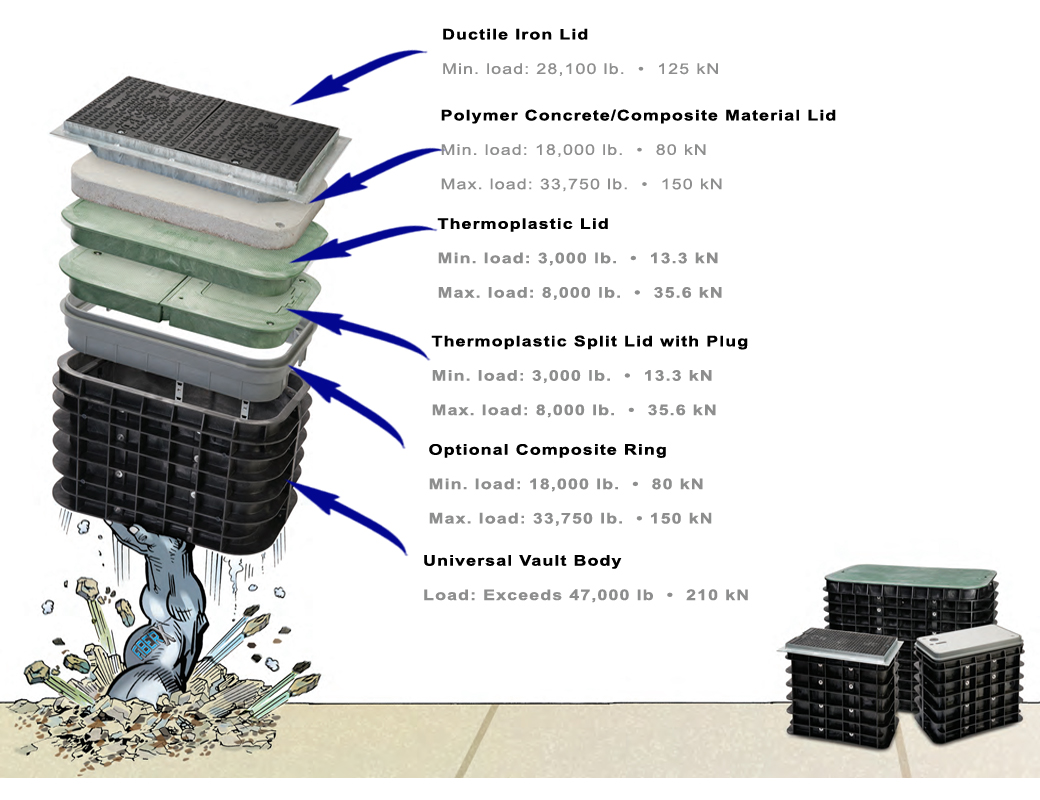

  • One universal vault body
  • Upgradeable design
  • Incredible strength
  • Lightweight solution
  • Superior cable management system

What makes Bulk different?

  • Upgrade in design: Bulk features embedded, factory installed racking
  • Racking gives Bulk the ability to be upgraded to a heavy duty application by simply changing the lid
  • Bulk eliminates the need for a ring
  • Bulk’s racks provide optimal cable organization and eliminate the need to purchase racking

Types of Products

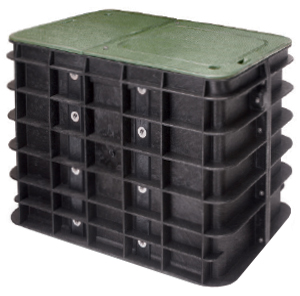

BULK 4 (BULK 2436) with Thermoplastic Lid

(Dimensions in Inches)

L x W x D

24 x 36 x 24

24 x 36 x 36

Light Duty

Application:

  • Targeted to light pedestrian use/light vehicular traffic – Residential – Parklands
  • Vault body is made of HDPE structural foam; flush mounted racking is standard
  • Lid features a L-boltTM lock
  • Vault body is upgradable to medium and heavy duty applications with a simple change in lid or ring design

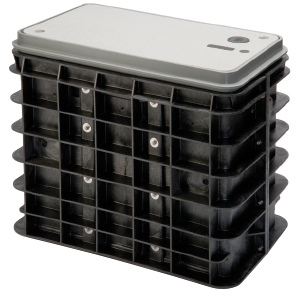

BULK 4 (BULK 2436) with Polymer Concrete/Composite Material Lid

(Dimensions in Inches)

L x W x D

24 x 36 x 24

24 x 36 x 36

Medium Duty

Application:

  • Used in areas of frequent pedestrian traffic and occasional vehicular traffic – Sidewalks – Traffic Dividers
  • Vault body is made of HDPE structural foam; flush mounted racking is standard.
  • Lid is made of polymer concrete/ composite materials
  • L-bolt or bolt down cover versions available
  • Optional composite or galvanized steel ring
  • Vault body is upgradable to heavy duty applications with a simple change in lid or ring design

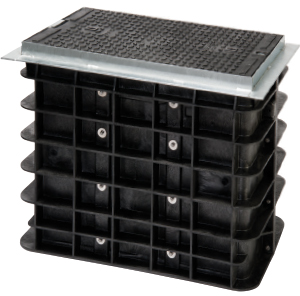

BULK 4 (BULK 2436) with Ductile Iron Lid

(Dimensions in Inches)

L x W x D

24 x 36 x 24

24 x 36 x 36

Heavy Duty

Application:

  • Used where light truck and auto traffic occur sporadically – Driveways – Alleys – Secondary roads
  • Vault body is made of HDPE structural foam; flush mounted racking is standard
  • Drop in polymer concrete/ composite material or ductile iron lid
  • Bolt down version only
  • Composite or ductile iron ring is available for concrete or asphalt applications
